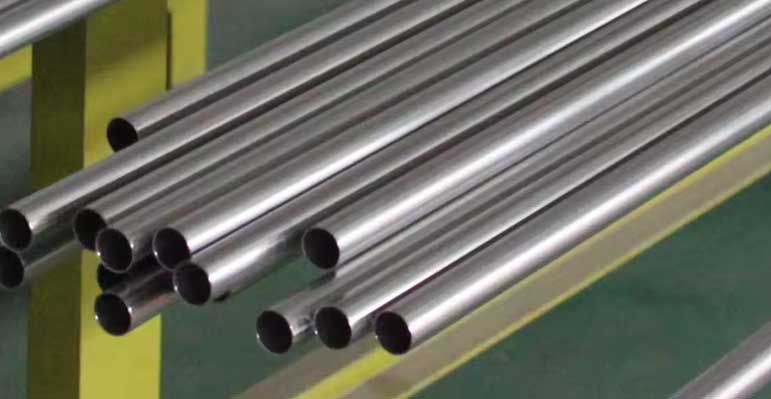

Straight Tube

Straight Tube

Straight stainless steel tubes are precision-manufactured tubes that provide excellent strength, uniformity, and corrosion resistance. These tubes are ideal for applications requiring high dimensional accuracy and a smooth, straight profile. They are widely used in industries such as chemical processing, pharmaceuticals, food processing, and general engineering. Available in various stainless steel grades and sizes, straight tubes meet rigorous industry standards for quality and performance.

Specification Table - Straight Tube

Parameter Details
Material Stainless Steel (304, 304L, 316, 316L)
Outer Diameter (OD) 6 mm – 168 mm (custom sizes available)
Wall Thickness 0.5 mm – 12 mm
Length 1 m – 12 m (straight length)
Surface Finish Mill Finish / Polished / Bright Annealed
Standards ASTM A213, ASTM A312, EN 10216-5, JIS G3463

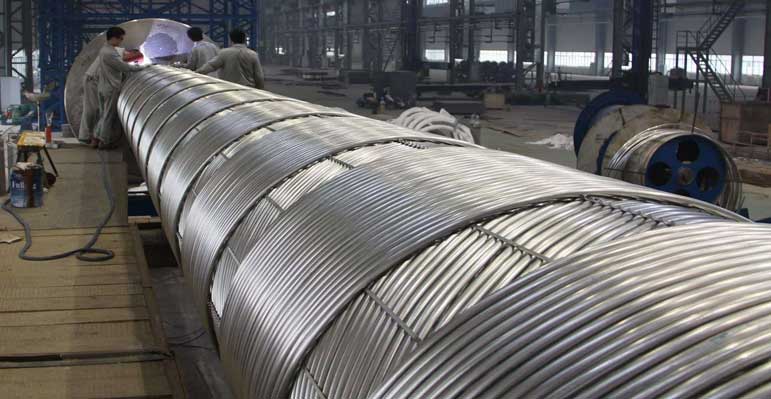

Coil Tube

Coil Tube

Stainless steel coil tubes are flexible, continuous-length tubes that are coiled for easy transportation, storage, and installation. They are ideal for applications requiring long runs without joints or welds, such as heat exchangers, chemical pipelines, and refrigeration systems. Coil tubes offer excellent corrosion resistance, uniform wall thickness, and smooth surface finish, ensuring reliable performance in critical industries like food processing, pharmaceuticals, and petrochemicals.

Specification Table - Coil Tube

Parameter Details
Material Stainless Steel (304, 304L, 316, 316L)
Outer Diameter (OD) 6 mm – 76 mm (custom sizes available)
Wall Thickness 0.5 mm – 5 mm
Coil Length 10 m – 100 m (per coil, custom lengths available)
Surface Finish Mill Finish / Polished / Bright Annealed
Standards ASTM A213, ASTM A269, EN 10216-5, JIS G3463

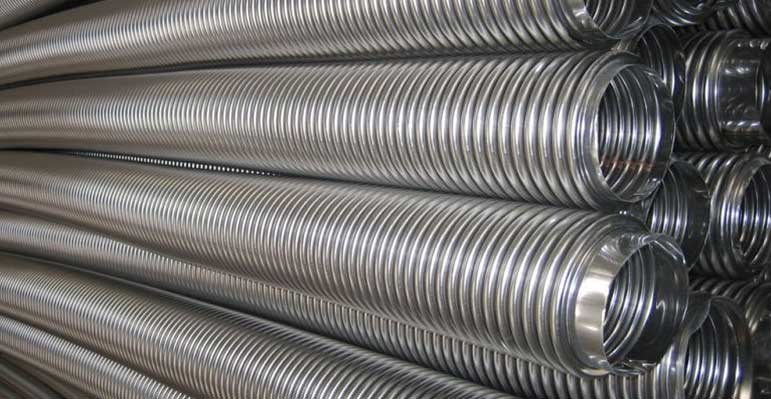

Stainless Steel Corrugated Tubes

Stainless Steel Corrugated Tubes

Stainless steel corrugated tubes are flexible tubes with a corrugated or ribbed structure, providing superior bendability while maintaining high strength and durability. These tubes are ideal for applications where vibration absorption, thermal expansion, or tight bending radii are required. Corrugated tubes are commonly used in chemical, pharmaceutical, petrochemical, and HVAC industries due to their excellent corrosion resistance, smooth interior for clean flow, and long service life.

Specification Table - Corrugated Tube

Parameter Details
Material Stainless Steel (304, 304L, 316, 316L)
Outer Diameter (OD) 6 mm – 114 mm (custom sizes available)
Wall Thickness 0.5 mm – 5 mm
Length Custom lengths per project requirement
Corrugation Pitch 5 mm – 25 mm (depending on tube size)
Surface Finish Mill Finish / Polished / Bright Annealed
Standards ASTM A213, ASTM A269, EN 10216-5, JIS G3463

Grades Table

Tube Type Common Grades Applications
Straight Tube 304, 304L, 316, 316L Chemical, Pharmaceuticals, Food Processing, General Engineering
Coil Tube 304, 304L, 316, 316L Heat Exchangers, Refrigeration Systems, Chemical Pipelines
Corrugated Tube 304, 304L, 316, 316L HVAC, Petrochemical, Chemical, Pharmaceutical, Vibration Absorption

Key Features

  • Flexible design with superior bendability
  • High strength and durability
  • Excellent corrosion and chemical resistance
  • Absorbs vibrations and accommodates thermal expansion
  • Smooth internal surface ensures clean flow
  • Ideal for tight bending radii applications
  • Long service life in industrial environments
